A method transfer failed last Tuesday because a buyer read “0.45 µm” on a PTFE membrane filter datasheet and assumed it meant the same thing as the 0.45 µm filter they had used for six years. It did not. The new lot passed visual inspection, fit the housing, and still produced a 22% recovery drop on a trace-level PAH method. The difference was not in the pore size. It was in which numbers on the sheet were tested and which were nominal. If you cannot tell the two apart, you are buying a promise instead of a part. This guide walks through a PTFE membrane filter datasheet line by line, shows how each value is actually measured, and flags the entries that suppliers hope you will not question.

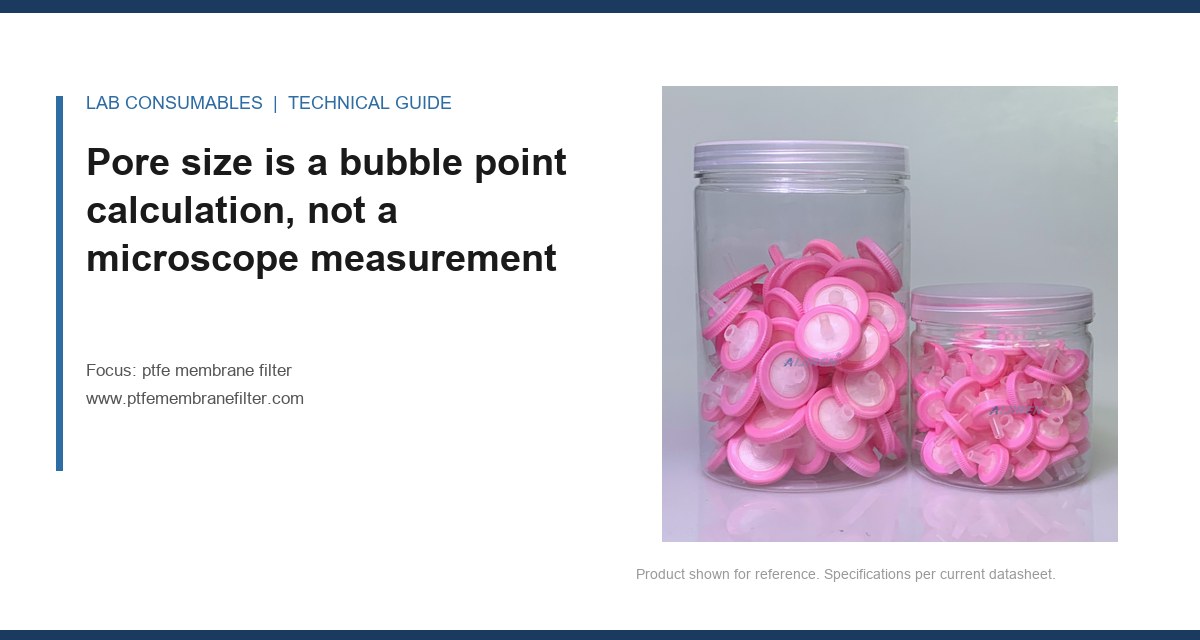

The most important number on a PTFE membrane filter datasheet is also the one most likely to be nominal. When a sheet lists 0.45 µm or 0.2 µm, that number is almost never a direct measurement of the largest hole in the membrane. It is derived from a bubble point test using a wetting fluid, usually isopropanol or a proprietary fluorinated liquid. The test pressurizes the wetted membrane until air breaks through the largest pore. The pressure at which that happens is converted to a pore diameter using the Washburn equation, which assumes cylindrical pores and a known surface tension. PTFE membranes have a tortuous, node-and-fibril structure. The pores are not cylinders. So the number is a functional equivalent, not a physical dimension.
I have seen two lots from the same manufacturer with identical “0.45 µm” labels where one had a bubble point of 13.5 psi and the other tested at 11.2 psi. Both passed the published spec of ≥10 psi. The first lot retained 0.3 µm latex beads at 99.8% efficiency. The second let 12% of the same beads through. If your method sits near a detection limit, that difference shows up as recovery drift. A datasheet that only lists pore size without the associated bubble point pressure and wetting fluid is hiding its test method. Ask for the bubble point spec in psi or bar. If the supplier will not give it, walk away.
For regulated work, the relevant test methods come from U.S. EPA SW-846 for environmental samples and from USP <797> for pharmaceutical filtration. Neither standard cares about a nominal pore size. Both care about retention efficiency at a specific challenge organism or particle size. The pore size on the label is a convenience. The retention rating is the contract.
Bubble point is the one number you can verify on the bench
Bubble point is the only spec on a PTFE membrane filter datasheet that an end user can check with a simple pressure gauge and a bottle of isopropanol. That makes it the most underused quality control tool in sample prep. The test is simple: wet the membrane completely, apply pressure to one side, and record the pressure at which the first continuous stream of bubbles appears on the downstream side. For a 0.45 µm PTFE membrane, a typical isopropanol bubble point is 10 to 14 psi. For 0.2 µm, expect 18 to 26 psi. For 0.1 µm, expect 30 to 45 psi. These ranges vary by manufacturer and wetting fluid, so the datasheet must state both.
A lot that drifts low on bubble point has larger effective pores or a defect. A lot that drifts high may have been over-stretched during manufacture, which reduces flow rate and can increase extractables. I once rejected a shipment of 0.2 µm PTFE syringe filters because the bubble point tested at 17 psi when the datasheet claimed 22 psi minimum. The supplier insisted the filters were fine. A retention test with Brevundimonas diminuta at 10⁷ CFU/cm² showed a log reduction value of 5.1 instead of the required 7. The lot failed. The bubble point caught it in ten minutes. The retention test confirmed it in three days.
When you compare datasheets, look for a bubble point spec that includes the test fluid, the temperature, and the acceptance range. A sheet that says only “bubble point: pass” is not a specification. It is a shrug.
Flow rate is a pressure-driven promise with an asterisk
Flow rate on a PTFE membrane filter datasheet is usually expressed as mL/min/cm² at a given pressure, often 10 psi or 0.7 bar, using water or isopropanol. This number is almost always a typical value, not a guaranteed one. The asterisk matters. A membrane lot with a 15% lower flow rate than the datasheet typical value is still within most suppliers’ internal acceptance limits. If your autosampler draws through a 0.2 µm filter and the flow rate drops 15%, your injection cycle time does not change, but your backpressure does. On a UHPLC system running a 2.1 mm column at 600 bar, that extra filter resistance can push you over the pump’s pressure limit.
I recommend treating published flow rates as relative comparisons between pore sizes, not as absolute predictions for your system. A 0.45 µm PTFE membrane typically flows water at 40 to 60 mL/min/cm² at 10 psi. A 0.2 µm membrane flows at 12 to 20 mL/min/cm² under the same conditions. The ratio between the two is roughly 3:1. That ratio is reliable. The absolute number is not. If your method validation depends on a specific flow rate, measure it yourself on your solvent, your housing, and your temperature. Do not copy the datasheet number into your SOP.
Thickness is a manufacturing output, not a quality input
PTFE membrane filter datasheets list thickness in microns or mils, typically 25 to 250 µm depending on whether the membrane is supported or unsupported. Unsupported PTFE membranes are thin and fragile. Supported membranes are laminated to a polypropylene or polyester backing, which adds thickness and mechanical strength. The thickness number on the sheet is a nominal value. It is not tested on every lot. It is set by the extrusion and stretching parameters on the production line and checked occasionally.
What thickness does tell you is how the membrane will behave in a filter housing. A 25 µm unsupported PTFE membrane will wrinkle if you torque the housing past 12 in-lb. A 150 µm supported membrane will tolerate 20 in-lb without distortion. If your filtration setup uses a stainless steel holder with a PTFE gasket, the membrane thickness determines whether the seal compresses evenly. Too thin, and you get bypass around the edge. Too thick, and the gasket cannot seat. Neither failure shows up on the datasheet. Both show up as sample loss or cross-contamination.
For syringe filter buyers, thickness is less critical than for disc filter users. A syringe filter manufacturer has already selected a membrane thickness that works with the housing. But if you buy bulk membrane rolls for in-house cutting, thickness variation of more than ±10% within a roll will cause inconsistent sealing. Ask for a thickness tolerance. If the datasheet does not list one, request the certificate of analysis for the specific lot.
Water entry pressure separates usable PTFE from decorative PTFE
PTFE is hydrophobic. That is the point of using it for gas filtration, venting, and organic solvent prep. The datasheet quantifies this hydrophobicity as water entry pressure (WEP), also called water breakthrough pressure. For a 0.2 µm PTFE membrane, a typical WEP is 15 to 25 psi. For 0.45 µm, expect 8 to 15 psi. For 0.1 µm, expect 30 to 50 psi. This number is tested, not nominal. It is measured by applying water pressure to one side of a dry membrane and recording the pressure at which water penetrates.
WEP matters for two reasons. First, it tells you whether the membrane will hold back aqueous solutions when you do not want them to pass. A vent filter on a solvent reservoir must have a WEP high enough to stay dry under normal operating conditions. Second, WEP tells you how much pressure you need to force an aqueous sample through the membrane if you are doing aqueous filtration with a PTFE filter. PTFE will not wet with water at low pressure. You either need a pre-wetting step with a solvent like methanol or you need a higher pressure. A datasheet that lists WEP as “hydrophobic” without a number is not giving you enough to design a method.
I have seen a lab switch from a 0.45 µm PTFE syringe filter with a WEP of 12 psi to a cheaper alternative with a WEP of 7 psi. The cheaper filter worked fine for methanol samples. It failed immediately on a 50:50 water:acetonitrile sample because the aqueous fraction could not push through at the autosampler’s 5 psi draw pressure. The fix was either to pre-wet every filter with methanol or to go back to the higher-WEP membrane. Neither option was in the original budget.
Extractables are tested, but only under conditions you may not use
Every PTFE membrane filter datasheet that targets analytical work will have an extractables statement. The typical claim is “low extractables” or “meets USP Class VI”. The first is marketing. The second is a biological reactivity test, not a chemical cleanliness test. Neither tells you what will leach into your sample under your specific solvent and temperature conditions.
What you need is a quantitative extractables profile. A serious supplier will provide data on total organic carbon (TOC), non-volatile residue (NVR), and sometimes specific ions or metals after extraction in water, methanol, and acetonitrile. For a clean PTFE membrane, a typical NVR spec is less than 0.5 mg per 47 mm disc after reflux in water for 24 hours. TOC in the extract should be below 1 ppm for ultra-trace work. If the datasheet does not list these numbers, the “low extractables” claim is unverified.
The test conditions matter as much as the numbers. Extractables in water at room temperature tell you nothing about extractables in dichloromethane at 40°C. PTFE itself is chemically inert, but the membrane may contain residual processing aids, surfactants from the wetting treatment, or adhesive from the support layer. These come out under aggressive solvent conditions. If your method uses a chlorinated solvent, ask for extractables data in that solvent. If the supplier cannot provide it, run your own extraction and look for ghost peaks in your chromatogram. A Restek technical resource on sample filtration will confirm that ghost peaks from filter extractables are a common source of method failure.
Temperature rating is a continuous use number, not a survival number
A PTFE membrane filter datasheet will list a maximum operating temperature, often 100°C to 260°C depending on the support layer and housing. PTFE itself can handle 260°C continuously. A polypropylene support cannot. A polypropylene syringe filter housing will soften above 80°C. The datasheet number is usually the continuous use limit for the lowest-rated component in the assembly, not the membrane alone.
This distinction matters when you filter hot solvents or sterilize by autoclaving. A PTFE membrane with a polypropylene support rated for 100°C will survive a 121°C autoclave cycle for 15 minutes. It will not survive 100 cycles. The polymer degrades gradually. The datasheet number is a continuous use rating. Intermittent exposure to higher temperatures may be acceptable, but the supplier will not guarantee it. If you autoclave filters, ask for the number of cycles the filter is validated for. Most suppliers will not have this data. That tells you something about how much they expect you to rely on the temperature rating.
For gas filtration at elevated temperatures, the membrane’s WEP drops as temperature rises. A 0.2 µm PTFE membrane with a WEP of 20 psi at 25°C may have a WEP of 12 psi at 80°C. The datasheet will not tell you this. You have to test it or ask the supplier for a temperature-corrected WEP curve. If you are filtering a hot gas stream, this is the difference between a dry vent and a flooded downstream line.
Puncture count is a proxy for handling tolerance
Some PTFE membrane filter datasheets, especially for disc filters used in automated systems, list a puncture count or burst strength. This is the number of times a standardized probe can strike the membrane before it fails. A typical unsupported 0.2 µm PTFE membrane has a puncture count of 1 to 3 under a 0.5 mm radius probe at a specified force. A supported membrane may survive 10 to 20 strikes.
This number is a typical value, not a guaranteed one. It is measured on a small sample from each lot. The variation between lots can be 30% or more. I have seen a lot of 25 mm PTFE disc filters with a published puncture count of 5 fail on the first strike in an automated filtration system. The root cause was a change in the support layer adhesive. The datasheet had not changed. The certificate of analysis for that lot showed a puncture count of 2, but the buyer never requested it.
If your process uses automated filter handling, request the lot-specific puncture count before accepting a shipment. If the supplier will not provide it, assume the worst-case value is half the published typical. That is a safer planning number than the datasheet.
Hydrophobic vs. hydrophilic PTFE: the datasheet line that changes everything
Most PTFE membrane filter datasheets offer two variants: hydrophobic and hydrophilic. The hydrophobic version is natural PTFE. The hydrophilic version has been chemically treated or coated to make it wettable with water. The datasheet will list the same pore size, thickness, and flow rate for both. That is misleading. The two membranes behave completely differently in aqueous applications.
A hydrophilic PTFE membrane with a nominal 0.45 µm pore size will pass water at low pressure. A hydrophobic PTFE membrane with the same pore size will not pass water at all until the pressure exceeds the WEP. The flow rate spec on the datasheet is usually measured with isopropanol, which wets both types. So the numbers look identical. They are not identical in water. If you are filtering aqueous samples, you need the hydrophilic version or you need to pre-wet the hydrophobic version with a solvent. The datasheet will not make this distinction clear unless you read the fine print on the wettability line.
For gas filtration, hydrophobic is the correct choice. For aqueous HPLC sample prep, hydrophilic PTFE is often preferred because it eliminates the pre-wetting step. But the hydrophilic treatment adds extractables. A hydrophilic PTFE membrane will have a higher NVR than the hydrophobic version from the same manufacturer. The datasheet may list the same extractables spec for both. That is a red flag. Ask for separate extractables data for the hydrophilic variant.
Sterility is a process claim, not a membrane property
Some PTFE membrane filter datasheets list “sterile” or “non-sterile” as a line item. Sterile filters are individually packaged and sterilized by gamma irradiation or ethylene oxide. The datasheet will state the sterilization method and the sterility assurance level (SAL), typically 10⁻⁶. This number is a process validation claim, not a membrane property. It is tested on every lot using biological indicators, but the test is destructive. The filters you receive are not individually tested for sterility. The lot is tested, and the sterility is inferred.
The critical line to check on a sterile PTFE membrane filter datasheet is the post-sterilization integrity. Gamma irradiation can degrade PTFE. The polymer chain scissions, the membrane becomes more brittle, and the bubble point can shift. A supplier that validates sterility will also provide post-irradiation bubble point data. If the datasheet does not mention post-sterilization integrity, assume the membrane properties may have changed. I have seen a lot of gamma-irradiated 0.2 µm PTFE filters with a pre-sterilization bubble point of 22 psi and a post-sterilization bubble point of 18 psi. The filters were still sterile. They were no longer 0.2 µm effective. The datasheet did not mention this.
For sterile filtration of aqueous solutions, a Thermo Fisher chromatography and sample handling resource will confirm that PTFE is rarely the first choice for aqueous sterile filtration because of its hydrophobicity. Hydrophilic PTFE or a different membrane material is usually better. The datasheet will not tell you this. It is your job to know it.
Housing material and dimensions: the line that gets ignored until it leaks
A PTFE membrane filter datasheet for syringe filters will list the housing material, usually polypropylene or acrylic, and the inlet/outlet configuration. For disc filters, it will list the diameter, typically 13 mm, 25 mm, 47 mm, or 90 mm. These numbers are tested. They are not nominal. A 25 mm filter that measures 24.7 mm will not seal in a 25 mm holder. A syringe filter with a luer slip inlet that is 0.2 mm too small will leak under pressure.
The housing material line matters because it determines the chemical compatibility of the filter assembly, not just the membrane. PTFE is compatible with almost everything. Polypropylene is not compatible with strong acids, some chlorinated solvents, and many esters. The datasheet may list the membrane as “universally compatible” while the housing is not. If you are filtering aggressive solvents, check the housing material line. If it says polypropylene, verify compatibility with your specific solvent. A Agilent chromatography consumables and columns compatibility chart will help, but the filter supplier’s own chemical compatibility table is the authoritative source.
Two field cases where the datasheet hid the real spec
Case 1: the disappearing surrogate. A contract lab running EPA 8270 for semivolatiles switched from a 0.45 µm PTFE syringe filter to a cheaper alternative with the same published pore size, bubble point, and extractables. Recoveries for the surrogate standard p-terphenyl-d14 dropped from 85% to 55% on the first batch. The lab ran a blank extraction through the new filter and found a peak at the same retention time as the surrogate. The filter was leaching a compound that co-eluted. The datasheet listed extractables as “low.” A quantitative NVR test on the specific lot showed 1.8 mg per filter, more than three times the previous supplier’s 0.5 mg. The fix was to return the lot and require lot-specific extractables data on every future shipment. The datasheet had not changed. The lot had.
Case 2: the slow autosampler. A pharmaceutical QC lab noticed that injection cycle times on a UHPLC system increased by 40% after switching to a new 0.2 µm PTFE syringe filter. The datasheet listed a flow rate of 18 mL/min/cm² at 10 psi, identical to the old filter. The lab measured the actual flow rate on their mobile phase, a 60:40 acetonitrile:buffer mixture. The new filter flowed at 9 mL/min/cm². The old one flowed at 15 mL/min/cm². The difference was in the support layer, which was denser on the new filter. The datasheet did not list support layer density. The lab had to adjust the autosampler draw speed and accept a 15% increase in cycle time until they could qualify a different filter. The lesson: flow rate specs are typical values measured under conditions that may not match yours. Measure it yourself.
A decision checklist for reading any PTFE membrane filter datasheet
When you sit down with a datasheet, work through this list. If a line is missing, ask for it. If the supplier will not provide it, treat that as a data point about the supplier.
- Pore size: Is the bubble point pressure and wetting fluid listed? If not, the pore size is nominal and unverifiable.
- Bubble point: Is there a minimum acceptance value in psi or bar? A range is better than a minimum. A single number with no tolerance is useless.
- Flow rate: Is the test fluid, pressure, and temperature stated? Is the number labeled as typical or guaranteed? If typical, apply a 20% safety margin.
- Thickness: Is there a tolerance? For bulk membrane, ±10% is the minimum acceptable. For syringe filters, thickness is set by the housing and less critical.
- Water entry pressure: Is a number given, not just the word “hydrophobic”? If you work with aqueous samples, this is a make-or-break spec.
- Extractables: Is there a quantitative NVR or TOC number? In what solvent and at what temperature? “Low extractables” is not a spec.
- Temperature rating: Is this for the membrane, the support, or the housing? Is it continuous use or intermittent? If you autoclave, ask for cycle validation.
- Puncture count: Is this a typical or guaranteed value? If you use automated handling, request lot-specific data.
- Wettability: Hydrophobic or hydrophilic? Are separate extractables and flow rate data provided for each variant?
- Sterility: If sterile, what is the SAL and the sterilization method? Is post-sterilization integrity data available?
- Housing material: Is it compatible with your solvent? The membrane may be PTFE, but the housing is not.
For buyers who need a reliable starting point, a PTFE membrane filter supplier that publishes full bubble point, WEP, and extractables data is worth more than one that offers a lower price with a thinner datasheet. The same logic applies across lab consumables. When I buy COD vials for wastewater testing, I check the lot-specific TOC background the same way I check filter extractables. When I buy vial inserts for HPLC, I verify the internal volume tolerance because a 5% variation changes injection precision. And when I buy 2 mL vials, I check the cap and septum compatibility before I check the price. The pattern is the same: the numbers that are tested cost more to verify, and suppliers that verify them will tell you so.
The decision rule is simple. A PTFE membrane filter datasheet that lists only pore size, diameter, and “low extractables” is a marketing document. A datasheet that lists bubble point with test fluid, WEP in psi, quantitative extractables in a named solvent, and a thickness tolerance is an engineering document. Buy from the second kind. Your method will not care about the price difference. It will care about the first lot that drifts.
